Laporan Praktikum II | Latihan Clien Server

Pada Praktikum kali ini saya akan membuat  latihan clien server.

1. pertama kita buat databasenya di localhost/phpmyadmin
2. buat databasenya dengan nama latihan
3. setelah itu kita buat tabel beri nama daftar_biodata. perhatihan berikut

4. buat project android beri nama latihan
5.setelah itu kita buat java di src.perhatikan gambar berikut

berikut sourcode dari java diatas

CustomHttpClient.java

package com.latihan;

import java.io.BufferedReader;

import java.io.IOException;

import java.io.InputStreamReader;

import java.net.URI;

import java.util.ArrayList;

import org.apache.http.HttpResponse;

import org.apache.http.NameValuePair;

import org.apache.http.client.HttpClient;

import org.apache.http.client.entity.UrlEncodedFormEntity;

import org.apache.http.client.methods.HttpGet;

import org.apache.http.client.methods.HttpPost;

import org.apache.http.conn.params.ConnManagerParams;

import org.apache.http.impl.client.DefaultHttpClient;

import org.apache.http.params.HttpConnectionParams;

import org.apache.http.params.HttpParams;

public class CustomHttpClient {

/** The time it takes for our client to timeout */

public static final int HTTP_TIMEOUT = 30 * 1000; // milliseconds

/** Single instance of our HttpClient */

private static HttpClient mHttpClient;

/**

* Get our single instance of our HttpClient object.

*

* @return an HttpClient object with connection parameters set

*/

private static HttpClient getHttpClient() {

if (mHttpClient == null) {

mHttpClient = new DefaultHttpClient();

final HttpParams params = mHttpClient.getParams();

HttpConnectionParams.setConnectionTimeout(params, HTTP_TIMEOUT);

HttpConnectionParams.setSoTimeout(params, HTTP_TIMEOUT);

ConnManagerParams.setTimeout(params, HTTP_TIMEOUT);

}

return mHttpClient;

}

/**

* Performs an HTTP Post request to the specified url with the specified

* parameters.

*

* @param url

*            The web address to post the request to

* @param postParameters

*            The parameters to send via the request

  * @return The result of the request

* @throws Exception

*/

public static String executeHttpPost(String url,

ArrayList<NameValuePair> postParameters) throws Exception {

BufferedReader in = null;

try {

HttpClient client = getHttpClient();

HttpPost request = new HttpPost(url);

UrlEncodedFormEntity formEntity = new UrlEncodedFormEntity(

postParameters);

request.setEntity(formEntity);

HttpResponse response = client.execute(request);

in = new BufferedReader(new InputStreamReader(response.getEntity()

.getContent()));

StringBuffer sb = new StringBuffer("");

String line = "";

String NL = System.getProperty("line.separator");

while ((line = in.readLine()) != null) {

sb.append(line + NL);

}

in.close();

String result = sb.toString();

return result;

} finally {

if (in != null) {

try {

in.close();

} catch (IOException e) {

e.printStackTrace();

}

}

}

}

/**

* Performs an HTTP GET request to the specified url.

*

* @param url

*            The web address to post the request to

* @return The result of the request

* @throws Exception

*/

public static String executeHttpGet(String url) throws Exception {

BufferedReader in = null;

try {

HttpClient client = getHttpClient();

HttpGet request = new HttpGet();

request.setURI(new URI(url));

HttpResponse response = client.execute(request);

in = new BufferedReader(new InputStreamReader(response.getEntity()

.getContent()));

StringBuffer sb = new StringBuffer("");

String line = "";

String NL = System.getProperty("line.separator");

while ((line = in.readLine()) != null) {

sb.append(line + NL);

}

in.close();

String result = sb.toString();

return result;

} finally {

if (in != null) {

try {

in.close();

} catch (IOException e) {

e.printStackTrace();

}

}

}

}

}

daftar.java

package com.latihan;

import java.util.ArrayList;

import org.apache.http.NameValuePair;

import org.apache.http.message.BasicNameValuePair;

import com.wilis.R;

import android.app.Activity;

import android.content.Intent;

import android.os.Bundle;

import android.view.View;

import android.widget.Button;

import android.widget.EditText;

import android.widget.RadioGroup;

import android.widget.TextView;

public class daftar extends Activity {

EditText  nama, alamat;

RadioGroup jk;

TextView status;

Button simpan;

/** Called when the activity is first created. */

@Override

public void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.data);

nama = (EditText) findViewById(R.id.txtnama);

jk = (RadioGroup) findViewById(R.id.jekel);

alamat = (EditText) findViewById(R.id.txtalamat);

simpan = (Button) findViewById(R.id.btnsimpan);

// keluar=(Button)findViewById(R.id.btnexit);

status = (TextView) findViewById(R.id.txtstatus);

simpan.setOnClickListener(new View.OnClickListener() {

@Override

public void onClick(View v) {

// TODO Auto-generated method stub

// atur variabel utk menampung pilihan jenis kelamin

String type = null;

switch (jk.getCheckedRadioButtonId()) {

case R.id.pria:

type = "Pria";

break;

case R.id.perempuan:

type = "Perempuan";

break;

}

ArrayList<NameValuePair> postParameters = new ArrayList<NameValuePair>();

postParameters.add(new BasicNameValuePair("nama", nama

.getText().toString()));

postParameters.add(new BasicNameValuePair("alamat", alamat

.getText().toString()));

postParameters.add(new BasicNameValuePair("jekel", type));

/* String valid = "1"; */

String response = null;

try {

response = CustomHttpClient.executeHttpPost(

"http://10.0.2.2/latihan/daftar_biodata.php",postParameters);

String res = response.toString();

res = res.trim();

res = res.replaceAll("\\s+", "");

status.setText(res);

if (res.equals("1"))

status.setText("Data tidak Tersimpan Ke server");

else

status.setText("Selamat data anda Berhasil di simpan");

}

catch (Exception e) {

//username.setText(e.toString());

}

}

});

}

}

6. langkah selanjutnya kita buat layoutnya. perhatikan gambar dibawah ini

berikut sourcode xmlnya

data.xml

<?xml version="1.0" encoding="utf-8"?>

<ScrollView xmlns:android="http://schemas.android.com/apk/res/android"

    android:id="@+id/widget124"

    android:layout_width="fill_parent"

    android:layout_height="fill_parent"

    android:orientation="vertical" >

    <LinearLayout

        android:id="@+id/widget124"

        android:layout_width="fill_parent"

        android:layout_height="fill_parent"

        android:orientation="vertical" >

        <TableLayout

            android:id="@+id/widget125"

            android:layout_width="wrap_content"

            android:layout_height="wrap_content"

            android:orientation="vertical" >

            <TableRow

                android:id="@+id/widget126"

                android:layout_width="fill_parent"

                android:layout_height="wrap_content"

                android:orientation="horizontal" >

            </TableRow>

            <TableRow

                android:id="@+id/widget129"

                android:layout_width="fill_parent"

                android:layout_height="wrap_content"

                android:orientation="horizontal" >

                <TextView

                    android:id="@+id/widget130"

                    android:layout_width="wrap_content"

                    android:layout_height="wrap_content"

                    android:text="Nama" />

                <EditText

                    android:id="@+id/txtnama"

                    android:layout_width="fill_parent"

                    android:layout_height="wrap_content"

                    android:text=""

                    android:textSize="18sp" />

            </TableRow>

            <TableRow

                android:id="@+id/widget132"

                android:layout_width="fill_parent"

                android:layout_height="wrap_content"

                android:orientation="horizontal" >

            </TableRow>

            <TableRow

                android:id="@+id/widget135"

                android:layout_width="fill_parent"

                android:layout_height="wrap_content"

                android:orientation="horizontal" >

                <TextView

                    android:id="@+id/widget136"

                    android:layout_width="wrap_content"

                    android:layout_height="wrap_content"

                    android:text="Alamat" />

                <EditText

                    android:id="@+id/txtalamat"

                    android:layout_width="wrap_content"

                    android:layout_height="wrap_content"

                    android:text=""

                    android:textSize="18sp" />

            </TableRow>

            <TableRow

                android:id="@+id/widget138"

                android:layout_width="fill_parent"

                android:layout_height="wrap_content"

                android:orientation="horizontal" >

                <TextView

                    android:id="@+id/widget139"

                    android:layout_width="wrap_content"

                    android:layout_height="wrap_content"

                    android:text="Jenis Kelamin     " />

                <RadioGroup

                    android:id="@+id/jekel"

                    android:layout_width="wrap_content"

                    android:layout_height="wrap_content"

                    android:orientation="horizontal" >

                    <RadioButton

                        android:id="@+id/pria"

                        android:layout_width="wrap_content"

                        android:layout_height="wrap_content"

                        android:text="Pria" />

                    <RadioButton

                        android:id="@+id/perempuan"

                        android:layout_width="wrap_content"

                        android:layout_height="wrap_content"

                        android:text="Perempuan" />

                </RadioGroup>

            </TableRow>

            <TableRow

                android:id="@+id/widget143"

                android:layout_width="fill_parent"

                android:layout_height="wrap_content"

                android:orientation="horizontal" >

            </TableRow>

            <TableRow

                android:id="@+id/widget146"

                android:layout_width="fill_parent"

                android:layout_height="wrap_content"

                android:orientation="horizontal" >

            </TableRow>

            <TableRow

                android:id="@+id/widget149"

                android:layout_width="fill_parent"

                android:layout_height="wrap_content"

                android:orientation="horizontal" >

            </TableRow>

            <TableRow

                android:id="@+id/widget152"

                android:layout_width="fill_parent"

                android:layout_height="wrap_content"

                android:orientation="horizontal" >

            </TableRow>

        </TableLayout>

        <TableLayout

            android:id="@+id/widget125"

            android:layout_width="wrap_content"

            android:layout_height="wrap_content"

            android:orientation="vertical" >

            <TableRow

                android:id="@+id/widget155"

                android:layout_width="fill_parent"

                android:layout_height="wrap_content"

                android:orientation="horizontal" >

                <Button

                    android:id="@+id/btnsimpan"

                    android:layout_width="wrap_content"

                    android:layout_height="wrap_content"

                    android:text="SIMPAN" />

            </TableRow>

        </TableLayout>

        <TextView

            android:id="@+id/txtstatus"

            android:layout_width="wrap_content"

            android:layout_height="wrap_content"

            android:text="" />

    </LinearLayout>

</ScrollView>

maka tampilanya seperi dibawah ini

7.  setelah itu maka hasil runningnya seperti dibawah ini

SEMOGA BERMANFAAT

Read More

Laporan Praktikum III | Membuat Crud Clien Server

Pada praktikum kali ini adalah membuat crud clien server.

Persiapan

*Database

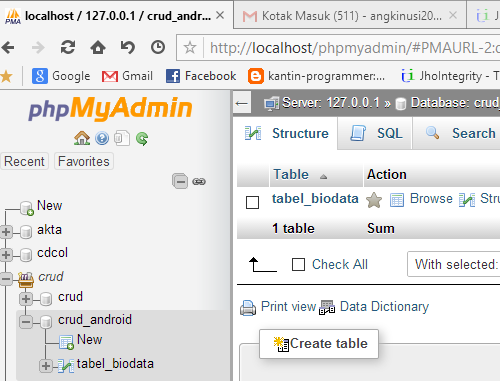

buka localhost/phpmyadmin. perharikan gambar berikut

setelah itu buatkan database dengan nama crud_android. perhatikan gambar beriku

*Php

buka folder htdocs (C:/xampp/htdocs

buat sebuah folder dengan nama crud_android

didalam folder crud_android buat sebuah file dengan nama server.php

langkah berikutnya buatkan tabel_biodata. sesuaikan dengan gambar berikut

*Android

Buat project File-New android Aplikation beri nama crud_android. perhatikan gambar di bawah ini

pada lokasi src pastikan sudah ada ketiga file berikut ini

pada lokasi res>layout pastikan sudah ada file berikut ini

Buka AndroidManifes.xml, kemudian pastikan memiliki permission Internet. Berikut berupa isi AndroidManifest.xml saya :

Buka server.php yang berada di lokasi C:\xampp\htdocs\crud_androidl\server.php, lalu ketikkan source code berikut :

<?php

$server = "localhost";

$username = "root";

$password = "";

$database = "crud_android";

mysql_connect($server, $username, $password) or die("<h1>Koneksi Mysql Error : </h1>" . mysql_error());

mysql_select_db($database) or die("<h1>Koneksi Kedatabase Error : </h1>" . mysql_error());

@$operasi = $_GET['operasi'];

switch ($operasi) {

    case "view":

          /* Source code untuk Menampilkan Biodata */



        $query_tampil_biodata = mysql_query("SELECT * FROM tabel_biodata") or die(mysql_error());

        $data_array = array();

        while ($data = mysql_fetch_assoc($query_tampil_biodata)) {

            $data_array[] = $data;

        }

        echo json_encode($data_array);

        break;

    case "insert":

        /* Source code untuk Insert data */

        @$nama = $_GET['nama'];

        @$alamat = $_GET['alamat'];

        $query_insert_data = mysql_query("INSERT INTO tabel_biodata (nama, alamat) VALUES('$nama', '$alamat')");

        if ($query_insert_data) {

            echo "Data Berhasil Disimpan";

        } else {

            echo "Error Inser Biodata " . mysql_error();

        }

        break;

    case "get_biodata_by_id":

        /* Source code untuk Edit data dan mengirim data berdasarkan id yang diminta */

        @$id = $_GET['id'];

        $query_tampil_biodata = mysql_query("SELECT * FROM tabel_biodata WHERE id='$id'") or die(mysql_error());

        $data_array = array();

        $data_array = mysql_fetch_assoc($query_tampil_biodata);

        echo "[" . json_encode($data_array) . "]";

        break;

 break;

    case "update":

        /* Source code untuk Updatedata */

        @$nama = $_GET['nama'];

        @$alamat = $_GET['alamat'];

        @$id = $_GET['id'];

        $query_update_biodata = mysql_query("UPDATE tabel_biodata SET nama='$nama', alamat='$alamat' WHERE id='$id'");

        if ($query_update_biodata) {

            echo "Update Data Berhasil";

        } else {

            echo mysql_error();

        }

        break;

    case "delete":

        /* Source code untuk Deletedata */

        @$id = $_GET['id'];

        $query_delete_biodata = mysql_query("DELETE FROM tabel_biodata WHERE id='$id'");

        if ($query_delete_biodata) {

            echo "Delete Data Berhasil";

        } else {

            echo mysql_error();

        }

   break;

    default:

        break;

}

?>

Android - main.xml. berikut sourcodenya

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

    xmlns:tools="http://schemas.android.com/tools"

    android:id="@+id/LinearLayout1"

    android:layout_width="match_parent"

    android:layout_height="match_parent"

    android:layout_gravity="center"

    android:orientation="vertical"

    tools:context=".MainActivity" >

    <Button

        android:id="@+id/buttonTambahBiodata"

        android:layout_width="186dp"

        android:layout_height="wrap_content"

        android:layout_gravity="center"

        android:text="Tambah Biodata" />

    <HorizontalScrollView

        android:id="@+id/horizontalScrollView"

        android:layout_width="match_parent"

        android:layout_height="wrap_content" >

        <ScrollView

            android:id="@+id/verticalScrollView"

            android:layout_width="wrap_content"

            android:layout_height="wrap_content" >

            <TableLayout

                android:id="@+id/tableBiodata"

                android:layout_width="wrap_content"

                android:layout_height="wrap_content"

                android:layout_marginTop="80dp" >

            </TableLayout>

        </ScrollView>

    </HorizontalScrollView>

</LinearLayout>

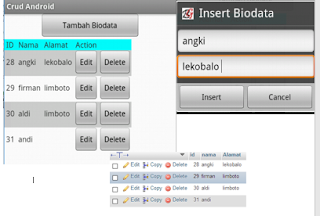

berikut hasil layout

Pada layout saya membuat TableLayout berada pada VerticalScrollView di dalamScrollView, ini berfungsi agar data yang memiliki lebar lebih dari ukuran layar secara otomoatis terscroll sehingga data semua bisa kelihatan.

Android - Koneksi.java

Path : src/jhohannes.com/Koneksi.java. berikt sourcodenya

package jhohannes.com;

import java.io.IOException;

import java.io.InputStream;

import java.io.InputStreamReader;

import java.net.HttpURLConnection;

import java.net.URL;

import java.net.URLConnection;

public class Koneksi {

public String call(String url) {

int BUFFER_SIZE = 2000;

InputStream in = null;

try {

in = OpenHttpConnection(url);

} catch (IOException e) {

e.printStackTrace();

return "";

}

InputStreamReader isr = new InputStreamReader(in);

int charRead;

String str = "";

char[] inputBuffer = new char[BUFFER_SIZE];

try {

while ((charRead = isr.read(inputBuffer)) > 0) {

String readString = String.copyValueOf(inputBuffer, 0, charRead);

str += readString;

inputBuffer = new char[BUFFER_SIZE];

}

in.close();

} catch (IOException e) {

// Handle Exception

e.printStackTrace();

return "";

}

return str;

}

private InputStream OpenHttpConnection(String url) throws IOException {

InputStream in = null;

int response = -1;

URL url1 = new URL(url);

URLConnection conn = url1.openConnection();

if (!(conn instanceof HttpURLConnection))

throw new IOException("Not An Http Connection");

try {

HttpURLConnection httpconn = (HttpURLConnection) conn;

httpconn.setAllowUserInteraction(false);

httpconn.setInstanceFollowRedirects(true);

httpconn.setRequestMethod("GET");

httpconn.connect();

response = httpconn.getResponseCode();

if (response == HttpURLConnection.HTTP_OK) {

in = httpconn.getInputStream();

}

} catch (Exception e) {

throw new IOException("Error connecting2");

}

return in;

}

}

Android - Biodata.java

Path : src/jhohannes.com/Koneksi.java

package jhohannes.com;

public class Biodata extends Koneksi {

String URL = "http://10.0.2.2/crud_android/server.php";

String url = "";

String response = "";

public String tampilBiodata() {

try {

url = URL + "?operasi=view";

System.out.println("URL Tampil Biodata: " + url);

response = call(url);

} catch (Exception e) {

}

return response;

}

public String inserBiodata(String nama, String alamat) {

try {

url = URL + "?operasi=insert&nama=" + nama + "&alamat=" + alamat;

System.out.println("URL Insert Biodata : " + url);

response = call(url);

} catch (Exception e) {

}

return response;

}

public String getBiodataById(int id) {

try {

url = URL + "?operasi=get_biodata_by_id&id=" + id;

System.out.println("URL Insert Biodata : " + url);

response = call(url);

} catch (Exception e) {

}

return response;

}

public String updateBiodata(String id, String nama, String alamat) {

try {

url = URL + "?operasi=update&id=" + id + "&nama=" + nama + "&alamat=" + alamat;

System.out.println("URL Insert Biodata : " + url);

response = call(url);

} catch (Exception e) {

}

return response;

}

public String deleteBiodata(int id) {

try {

url = URL + "?operasi=delete&id=" + id;

System.out.println("URL Insert Biodata : " + url);

response = call(url);

} catch (Exception e) {

}

return response;

}

}

Method yang ada dalam class ini akan membentuk url yang selanjutnya akan dikirim ke Server ( Perhatikan URL yang dicoba di Browser sebelumnya). setelah url dieksekusi maka output yang terlihat di browser  akan di ditangka oleh Method ini, kemudian hasilnya akan dikirim kepada yang memanggil.

Android - MainActivity.java

Path : src/jhohannes.com/MainActivity.java

package jhohannes.com;

import java.util.ArrayList;

import jhohannes.purba.R;

import org.json.JSONArray;

import org.json.JSONException;

import org.json.JSONObject;

import android.app.Activity;

import android.app.AlertDialog;

import android.content.DialogInterface;

import android.graphics.Color;

import android.os.Bundle;

import android.support.v4.view.ViewPager.LayoutParams;

import android.view.View;

import android.view.View.OnClickListener;

import android.widget.Button;

import android.widget.EditText;

import android.widget.LinearLayout;

import android.widget.TableLayout;

import android.widget.TableRow;

import android.widget.TextView;

import android.widget.Toast;

public class MainActivity extends Activity implements OnClickListener {

Biodata biodata = new Biodata();

TableLayout tabelBiodata;

Button buttonTambahBiodata;

ArrayList<Button> buttonEdit = new ArrayList<Button>();

ArrayList<Button> buttonDelete = new ArrayList<Button>();

JSONArray arrayBiodata;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.main);

tabelBiodata = (TableLayout) findViewById(R.id.tableBiodata);

buttonTambahBiodata = (Button) findViewById(R.id.buttonTambahBiodata);

buttonTambahBiodata.setOnClickListener(this);

TableRow barisTabel = new TableRow(this);

barisTabel.setBackgroundColor(Color.CYAN);

TextView viewHeaderId = new TextView(this);

TextView viewHeaderNama = new TextView(this);

TextView viewHeaderAlamat = new TextView(this);

TextView viewHeaderAction = new TextView(this);

viewHeaderId.setText("ID");

viewHeaderNama.setText("Nama");

viewHeaderAlamat.setText("Alamat");

viewHeaderAction.setText("Action");

viewHeaderId.setPadding(5, 1, 5, 1);

viewHeaderNama.setPadding(5, 1, 5, 1);

viewHeaderAlamat.setPadding(5, 1, 5, 1);

viewHeaderAction.setPadding(5, 1, 5, 1);

barisTabel.addView(viewHeaderId);

barisTabel.addView(viewHeaderNama);

barisTabel.addView(viewHeaderAlamat);

barisTabel.addView(viewHeaderAction);

tabelBiodata.addView(barisTabel, new TableLayout.LayoutParams(LayoutParams.WRAP_CONTENT,

LayoutParams.WRAP_CONTENT));

try {

arrayBiodata = new JSONArray(biodata.tampilBiodata());

for (int i = 0; i < arrayBiodata.length(); i++) {

JSONObject jsonChildNode = arrayBiodata.getJSONObject(i);

String name = jsonChildNode.optString("nama");

String alamat = jsonChildNode.optString("Alamat");

String id = jsonChildNode.optString("id");

System.out.println("Nama :" + name);

System.out.println("Alamat :" + alamat);

System.out.println("ID :" + id);

barisTabel = new TableRow(this);

if (i % 2 == 0) {

barisTabel.setBackgroundColor(Color.LTGRAY);

}

TextView viewId = new TextView(this);

viewId.setText(id);

viewId.setPadding(5, 1, 5, 1);

barisTabel.addView(viewId);

TextView viewNama = new TextView(this);

viewNama.setText(name);

viewNama.setPadding(5, 1, 5, 1);

barisTabel.addView(viewNama);

TextView viewAlamat = new TextView(this);

viewAlamat.setText(alamat);

viewAlamat.setPadding(5, 1, 5, 1);

barisTabel.addView(viewAlamat);

buttonEdit.add(i, new Button(this));

buttonEdit.get(i).setId(Integer.parseInt(id));

buttonEdit.get(i).setTag("Edit");

buttonEdit.get(i).setText("Edit");

buttonEdit.get(i).setOnClickListener(this);

barisTabel.addView(buttonEdit.get(i));

buttonDelete.add(i, new Button(this));

buttonDelete.get(i).setId(Integer.parseInt(id));

buttonDelete.get(i).setTag("Delete");

buttonDelete.get(i).setText("Delete");

buttonDelete.get(i).setOnClickListener(this);

barisTabel.addView(buttonDelete.get(i));

tabelBiodata.addView(barisTabel, new TableLayout.LayoutParams(LayoutParams.MATCH_PARENT,

LayoutParams.MATCH_PARENT));

}

} catch (JSONException e) {

e.printStackTrace();

}

}

public void onClick(View view) {

if (view.getId() == R.id.buttonTambahBiodata) {

// Toast.makeText(MainActivity.this, "Button Tambah Data",

// Toast.LENGTH_SHORT).show();

tambahBiodata();

} else {

/*

* Melakukan pengecekan pada data array, agar sesuai dengan index

* masing-masing button

*/

for (int i = 0; i < buttonEdit.size(); i++) {

/* jika yang diklik adalah button edit */

if (view.getId() == buttonEdit.get(i).getId() && view.getTag().toString().trim().equals("Edit")) {

// Toast.makeText(MainActivity.this, "Edit : " +

// buttonEdit.get(i).getId(), Toast.LENGTH_SHORT).show();

int id = buttonEdit.get(i).getId();

getDataByID(id);

} /* jika yang diklik adalah button delete */

else if (view.getId() == buttonDelete.get(i).getId() && view.getTag().toString().trim().equals("Delete")) {

// Toast.makeText(MainActivity.this, "Delete : " +

// buttonDelete.get(i).getId(), Toast.LENGTH_SHORT).show();

int id = buttonDelete.get(i).getId();

deleteBiodata(id);

}

}

}

}

public void deleteBiodata(int id) {

biodata.deleteBiodata(id);

/* restart acrtivity */

finish();

startActivity(getIntent());

}

public void getDataByID(int id) {

String namaEdit = null, alamatEdit = null;

JSONArray arrayPersonal;

try {

arrayPersonal = new JSONArray(biodata.getBiodataById(id));

for (int i = 0; i < arrayPersonal.length(); i++) {

JSONObject jsonChildNode = arrayPersonal.getJSONObject(i);

namaEdit = jsonChildNode.optString("nama");

alamatEdit = jsonChildNode.optString("Alamat");

}

} catch (JSONException e) {

e.printStackTrace();

}

LinearLayout layoutInput = new LinearLayout(this);

layoutInput.setOrientation(LinearLayout.VERTICAL);

// buat id tersembunyi di alertbuilder

final TextView viewId = new TextView(this);

viewId.setText(String.valueOf(id));

viewId.setTextColor(Color.TRANSPARENT);

layoutInput.addView(viewId);

final EditText editNama = new EditText(this);

editNama.setText(namaEdit);

layoutInput.addView(editNama);

final EditText editAlamat = new EditText(this);

editAlamat.setText(alamatEdit);

layoutInput.addView(editAlamat);

AlertDialog.Builder builderEditBiodata = new AlertDialog.Builder(this);

builderEditBiodata.setIcon(R.drawable.batagrams);

builderEditBiodata.setTitle("Update Biodata");

builderEditBiodata.setView(layoutInput);

builderEditBiodata.setPositiveButton("Update", new DialogInterface.OnClickListener() {

@Override

public void onClick(DialogInterface dialog, int which) {

String nama = editNama.getText().toString();

String alamat = editAlamat.getText().toString();

System.out.println("Nama : " + nama + " Alamat : " + alamat);

String laporan = biodata.updateBiodata(viewId.getText().toString(), editNama.getText().toString(),

editAlamat.getText().toString());

Toast.makeText(MainActivity.this, laporan, Toast.LENGTH_SHORT).show();

/* restart acrtivity */

finish();

startActivity(getIntent());

}

});

builderEditBiodata.setNegativeButton("Cancel", new DialogInterface.OnClickListener() {

@Override

public void onClick(DialogInterface dialog, int which) {

dialog.cancel();

}

});

builderEditBiodata.show();

}

public void tambahBiodata() {

/* layout akan ditampilkan pada AlertDialog */

LinearLayout layoutInput = new LinearLayout(this);

layoutInput.setOrientation(LinearLayout.VERTICAL);

final EditText editNama = new EditText(this);

editNama.setHint("Nama");

layoutInput.addView(editNama);

final EditText editAlamat = new EditText(this);

editAlamat.setHint("Alamat");

layoutInput.addView(editAlamat);

AlertDialog.Builder builderInsertBiodata = new AlertDialog.Builder(this);

builderInsertBiodata.setIcon(R.drawable.batagrams);

builderInsertBiodata.setTitle("Insert Biodata");

builderInsertBiodata.setView(layoutInput);

builderInsertBiodata.setPositiveButton("Insert", new DialogInterface.OnClickListener() {

@Override

public void onClick(DialogInterface dialog, int which) {

String nama = editNama.getText().toString();

String alamat = editAlamat.getText().toString();

System.out.println("Nama : " + nama + " Alamat : " + alamat);

String laporan = biodata.inserBiodata(nama, alamat);

Toast.makeText(MainActivity.this, laporan, Toast.LENGTH_SHORT).show();

/* restart acrtivity */

finish();

startActivity(getIntent());

}

});

builderInsertBiodata.setNegativeButton("Cancel", new DialogInterface.OnClickListener() {

@Override

public void onClick(DialogInterface dialog, int which) {

dialog.cancel();

}

});

builderInsertBiodata.show();

}

}

Di sini saya hanya akan menjelaskan bagaimana proses JSON bekerja, jika ingin mempelajari tampilan silahkan lihat referensinya di google.

Data yang diterima dari Biodata.java masih berupa String tetapi memiliki struktur JSON Encode. Dengan memasukkan String tersebut ke dalanJSONArray, maka otomatis data akan tersimpan didalam array. Tetapi perlu di ingat, bahwa data yang kita terima dari mysql adalah data berupa baris dan kolom.

jika dilhat hasil Json array, maka akan menyimpan data seperti berikut
array[0] =>  id=1, nama=Jhohannes Purba, alamat=Kabanjahe

array[1] =>  id=2, nama=Berkat Junaidi Banureae, alamat=Sidikalang

array[2] =>  id=3, nama=Totok Bluesman Silalahi, alamat=Medan

Jika kita ingin mengambil data berdasarkan filednya, misalnya hanya menampilkan data dengan isi Jhohannes Purba, berarti kita harus pecah lagi struktur arraynya dengan menggunakan JSONObject. Dengan menggunakan JSONObject maka kita mengambil data berdasarkan fieldnya saja dan kita bisa melakukan proses selanjutnya.

Untuk Hasil Runningnya seperti gambar berikkut

berikut ini hasil dari update dan hapus

Proses Delete

Semoga Bermanfaat

Read More
